Web Map Tile Service v2 (WMTS)

The Terrascope Web Map Tile Service (WMTS) is a standard protocol for serving georeferenced map tiles over the internet. WMTS v2 is the successor to the original Terrascope WMTS service, offering improved performance and compatibility. Accessing WMTS is possible via a web browser or desktop tools like QGIS.

The Terrascope WMTS v2 URL is
https://wmts.terrascope.be/?service=wmts&request=GetCapabilities

Configuration

QGIS

To add the Terrascope WMTS v2 service to QGIS:

  1. Open the Browser pane. If it is not visible, go to View > Panels > Browser Panel.

  2. Locate WMS/WMTS in the tree, right-click it, and select New Connection…

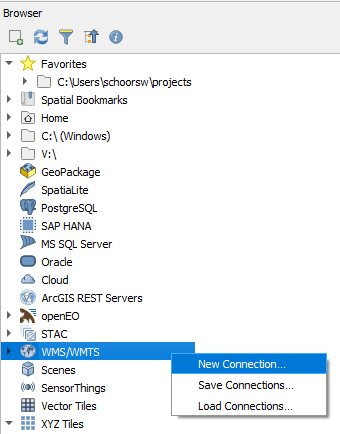

    WMS/WMTS connection in the QGIS Browser pane.

  3. Enter the following URL and click OK:

    https://wmts.terrascope.be/?service=WMTS&request=GetCapabilities

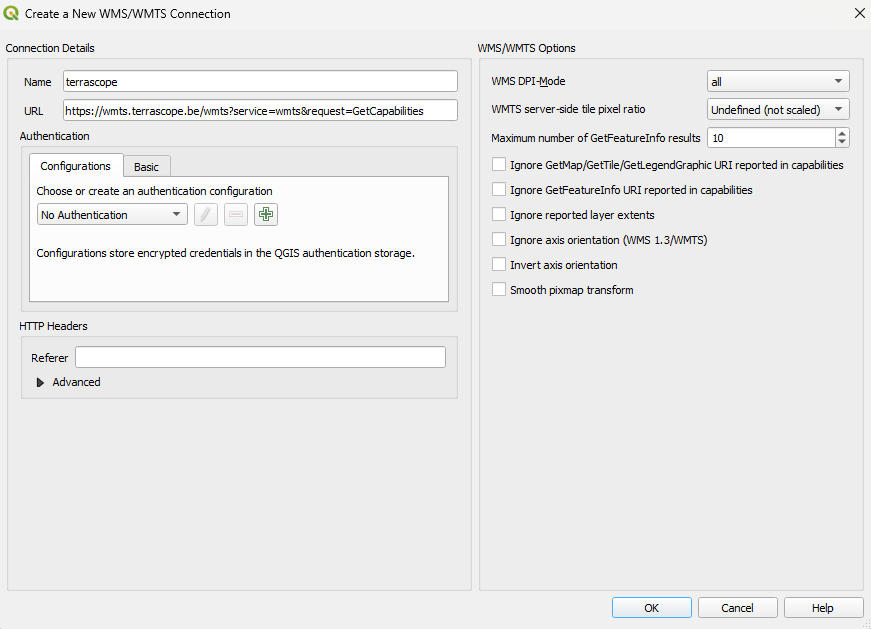

    Configuring the WMTS connection.

  4. Expand the new connection under WMS/WMTS. Double-click a layer or drag it onto the map canvas to display it.

Authentication

No authentication is required to access public WMTS layers. To access restricted layers, add OAuth2 authentication when creating or editing the connection. Choose the Resource Owner grant flow and fill in the following details:

Setting Value
Token URL https://sso.terrascope.be/auth/realms/terrascope/protocol/openid-connect/token
Client ID public
Username your Terrascope username
Password your Terrascope password

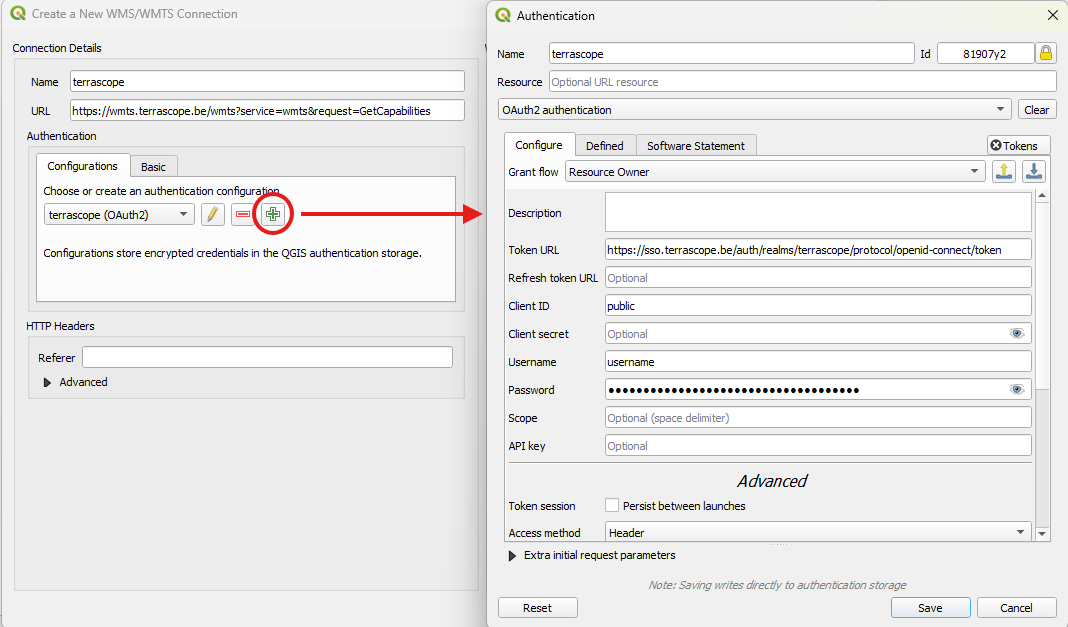

OAuth2 authentication settings for the WMTS connection.

Available layers

terrascope-probav-s1-toc-100m-cog-v2_nir

False Colour Infrared

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2014/03/12 - 2021/10/31

terrascope-probav-s1-toc-100m-cog-v2_radiometry

True Color Composite

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2014/03/12 - 2021/10/31

terrascope-probav-s1-toc-1km-cog-v2_nir

False Colour Infrared

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2013/10/15 - 2021/10/31

terrascope-probav-s1-toc-1km-cog-v2_radiometry

True Color Composite

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2013/10/15 - 2021/10/31

terrascope-probav-s1-toc-333m-cog-v2_nir

False Colour Infrared

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2013/10/15 - 2021/10/31

terrascope-probav-s1-toc-333m-cog-v2_radiometry

True Color Composite

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2013/10/15 - 2021/10/31

terrascope-probav-s1-toc-ndvi-100m-cog-v2_ndvi

NDVI

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2014/03/12 - 2021/10/31

terrascope-probav-s10-toc-1km-cog-v2_nir

False Colour Infrared

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2013/10/11 - 2021/10/21

terrascope-probav-s10-toc-1km-cog-v2_radiometry

True Color Composite

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2013/10/11 - 2021/10/21

terrascope-probav-s10-toc-333m-cog-v2_nir

False Colour Infrared

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2013/10/11 - 2021/10/21

terrascope-probav-s10-toc-333m-cog-v2_radiometry

True Color Composite

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2013/10/11 - 2021/10/21

terrascope-probav-s10-toc-ndvi-1km-cog-v2_ndvi

NDVI

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2013/10/11 - 2021/10/21

terrascope-probav-s10-toc-ndvi-333m-cog-v2_ndvi

NDVI

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2013/10/11 - 2021/10/21

terrascope-probav-s5-toc-100m-cog-v2_nir

False Colour Infrared

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2014/03/11 - 2021/10/26

terrascope-probav-s5-toc-100m-cog-v2_radiometry

True Color Composite

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2014/03/11 - 2021/10/26

terrascope-probav-s5-toc-ndvi-100m-cog-v2_ndvi

NDVI

Property Value
Spatial extent [-180.0, -56.0, 180.0, 75.0]
Temporal extent 2014/03/11 - 2021/10/26

terrascope-s1-grd-sigma0-v1_vv-vh

VV/VH

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/01/03 - 2026/04/06

terrascope-s1-slc-coherence-v1_vv

VV

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/01/03 - 2026/03/31

terrascope-s2-chl-v1_chl

CHL

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/07/06 - 2026/04/06

terrascope-s2-fapar-v2_fapar

FAPAR

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/07/06 - 2026/04/06

terrascope-s2-fcover-v2_fcover

FCOVER

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/07/06 - 2026/04/06

terrascope-s2-lai-v2_lai

LAI

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/07/06 - 2026/04/06

terrascope-s2-ndvi-v2_ndvi

NDVI

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/07/06 - 2026/04/06

terrascope-s2-rhow-v1_rhow

RHOW

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/07/06 - 2026/04/06

terrascope-s2-spm-v1_spm

SPM

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/07/06 - 2026/04/06

terrascope-s2-toc-v2_nir

False Colour Infrared Image

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/07/06 - 2026/04/06

terrascope-s2-toc-v2_tci

True Colour Image

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/07/06 - 2026/04/06

terrascope-s2-tur-v1_tur

TUR

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2015/07/06 - 2026/04/06

terrascope-s3-lst-s1-v1_lst-sentinel-3a

Land Surface Temperature

Property Value
Spatial extent [-180.0, -65.0, 180.0, 75.0]
Temporal extent 2020/05/03 - 2026/04/05

terrascope-s3-lst-s1-v1_lst-sentinel-3b

Land Surface Temperature

Property Value
Spatial extent [-180.0, -65.0, 180.0, 75.0]
Temporal extent 2020/05/03 - 2026/04/05

terrascope-s3-lst-s10-v1_lst

Land Surface Temperature

Property Value
Spatial extent [-180.0, -65.0, 180.0, 75.0]
Temporal extent 2020/05/01 - 2026/03/21

terrascope-s3-syn-vgt-s1-v1_ndvi-sentinel-3a

NDVI

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/07/01 - 2026/04/04

terrascope-s3-syn-vgt-s1-v1_ndvi-sentinel-3b

NDVI

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/07/01 - 2026/04/04

terrascope-s3-syn-vgt-s1-v1_nir-sentinel-3a

Infrared Image

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/07/01 - 2026/04/04

terrascope-s3-syn-vgt-s1-v1_nir-sentinel-3b

Infrared Image

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/07/01 - 2026/04/04

terrascope-s3-syn-vgt-s1-v1_tci-sentinel-3a

True Colour Image

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/07/01 - 2026/04/04

terrascope-s3-syn-vgt-s1-v1_tci-sentinel-3b

True Colour Image

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/07/01 - 2026/04/04

terrascope-s3-syn-vgt-s10-v1_ndvi-sentinel-3a

NDVI

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/06/01 - 2026/03/21

terrascope-s3-syn-vgt-s10-v1_ndvi-sentinel-3b

NDVI

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/06/01 - 2026/03/21

terrascope-s3-syn-vgt-s10-v1_nir-sentinel-3a

Infrared Image

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/06/01 - 2026/03/21

terrascope-s3-syn-vgt-s10-v1_nir-sentinel-3b

Infrared Image

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/06/01 - 2026/03/21

terrascope-s3-syn-vgt-s10-v1_tci-sentinel-3a

True Colour Image

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/06/01 - 2026/03/21

terrascope-s3-syn-vgt-s10-v1_tci-sentinel-3b

True Colour Image

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2020/06/01 - 2026/03/21

terrascope-s5p-l3-ch4-td-v2_CH4

CH4

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/04/30 - 2026/04/01

terrascope-s5p-l3-ch4-tm-v2_CH4

CH4

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/04/01 - 2026/03/01

terrascope-s5p-l3-ch4-ty-v2_CH4

CH4

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2019/01/01 - 2025/01/01

terrascope-s5p-l3-co-td-v2_CO

CO

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/04/30 - 2026/04/05

terrascope-s5p-l3-co-tm-v2_CO

CO

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/04/01 - 2026/03/01

terrascope-s5p-l3-co-ty-v2_CO

CO

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2019/01/01 - 2025/01/01

terrascope-s5p-l3-hcho-td-v2_HCHO

HCHO

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/07 - 2026/04/05

terrascope-s5p-l3-hcho-tm-v2_HCHO

HCHO

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/01 - 2026/03/01

terrascope-s5p-l3-hcho-ty-v2_HCHO

HCHO

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2019/01/01 - 2025/01/01

terrascope-s5p-l3-no2-td-v2_NO2

NO2

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/01 - 2026/04/05

terrascope-s5p-l3-no2-tm-v2_NO2

NO2

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/01 - 2026/02/01

terrascope-s5p-l3-no2-ty-v2_NO2

NO2

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2019/01/01 - 2025/01/01

terrascope-s5p-l3-no2eu-td-v2_NO2_CAMS

NO2EU

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/01 - 2026/03/01

terrascope-s5p-l3-no2eu-tm-v2_NO2_CAMS

NO2EU

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/01 - 2026/02/01

terrascope-s5p-l3-no2eu-ty-v2_NO2_CAMS

NO2EU

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2019/01/01 - 2023/01/01

terrascope-s5p-l3-no2sf-td-v2_NO2SF

NO2SF

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/01 - 2026/03/01

terrascope-s5p-l3-no2sf-tm-v2_NO2SF

NO2SF

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/01 - 2025/12/01

terrascope-s5p-l3-no2sf-ty-v2_NO2SF

NO2SF

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2019/01/01 - 2024/01/01

terrascope-s5p-l3-so2-td-v2_SO2

SO2

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/01 - 2026/04/01

terrascope-s5p-l3-so2-tm-v2_SO2

SO2

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/01 - 2026/02/01

terrascope-s5p-l3-so2-ty-v2_SO2

SO2

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2019/01/01 - 2025/01/01

terrascope-s5p-l3-so2cbr-td-v2_SO2CBR

SO2CBR

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/07 - 2025/12/24

terrascope-s5p-l3-so2cbr-tm-v2_SO2CBR

SO2CBR

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2018/05/01 - 2025/11/01

terrascope-s5p-l3-so2cbr-ty-v2_SO2CBR

SO2CBR

Property Value
Spatial extent [-180.0, -89.0, 180.0, 89.0]
Temporal extent 2019/01/01 - 2024/01/01

cop-dem-glo-90m-cog_dem

DEM

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2012/11/20

cropsar2d-fapar-nrt_fapar

CropSAR2d_FAPAR

Property Value
Spatial extent [2.4, 49.4, 6.5, 51.6]
Temporal extent 2025/08/01 - 2026/04/01

esa-worldcereal-activecropland-10m-2021-v1_classification

None

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2021/01/01

esa-worldcereal-irrigation-10m-2021-v1_classification

None

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2021/01/01

esa-worldcereal-maize-10m-2021-v1_classification

None

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2021/01/01

esa-worldcereal-springcereals-10m-2021-v1_classification

None

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2021/01/01

esa-worldcereal-temporarycrops-10m-2021-v1_classification

None

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2021/01/01

esa-worldcereal-wintercereals-10m-2021-v1_classification

None

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2021/01/01

esa-worldcover-map-10m-2020-v1_map

MAP

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2020/01/01

esa-worldcover-map-10m-2021-v2_map

MAP

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2021/01/01

esa-worldcover-ndvi-10m-2020-v1_ndvi

NDVI

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2020/01/01

esa-worldcover-ndvi-10m-2021-v2_ndvi

NDVI

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2021/01/01

esa-worldcover-s1vvvhratio-10m-2020-v1_vvvhratio

VV/VHratio

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2020/01/01

esa-worldcover-s1vvvhratio-10m-2021-v2_vvvhratio

VV/VHratio

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2021/01/01

esa-worldcover-s2rgbnir-10m-2020-v1_fcc

False Colour Infrared Composite

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2020/01/01

esa-worldcover-s2rgbnir-10m-2020-v1_tcc

True Colour Composite

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2020/01/01

esa-worldcover-s2rgbnir-10m-2021-v2_fcc

False Colour Infrared Composite

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2021/01/01

esa-worldcover-s2rgbnir-10m-2021-v2_tcc

True Colour Composite

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2021/01/01

esa-worldcover-swir-10m-2020-v1_swir

SWIR

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2020/01/01

esa-worldcover-swir-10m-2021-v2_swir

SWIR

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2021/01/01

lcfm-lcm-10_map

MAP

Property Value
Spatial extent [-180.0, -60.0, 180.0, 83.0]
Temporal extent 2020/01/01

opera-s1-rtc-static-v1_local_incidence_angle

Local Incidence Angle

Property Value
Spatial extent [-180.0, -90.0, 180.0, 90.0]
Temporal extent 2016/05/01 - 2016/05/12

opera-s1-rtc-v1_vh

VH backscatter

Property Value
Spatial extent [-180.0, -60.0, 180.0, 90.0]
Temporal extent 2016/04/15 - 2026/03/16

opera-s1-rtc-v1_vv

VV backscatter

Property Value
Spatial extent [-180.0, -60.0, 180.0, 90.0]
Temporal extent 2016/04/15 - 2026/03/16

opera-s1-rtc-v1_vv-vh

VV-VH backscatter

Property Value
Spatial extent [-180.0, -60.0, 180.0, 90.0]
Temporal extent 2016/04/15 - 2026/03/16

sentinel-2-ltmm-2017-2024_ltmm

True color

Property Value
Spatial extent [-180.0, -84.0, 180.0, 84.0]
Temporal extent 2020/03/01 - 2020/11/01
Back to top
